Marshall Amps Malta

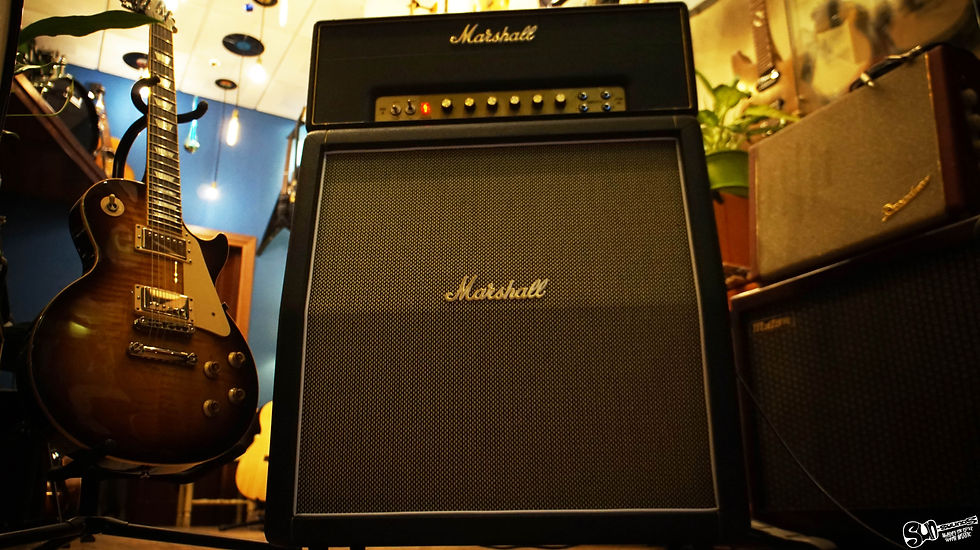

Marshall JTM45 MKII | and 2016CX angled Cab


Here we have a reissue of the amp that started it all, a Marshall JTM45 in Mint condition along a 2016CX cabinet. It has almost no marks of use on it, can be considered a floor model guitar amp. Its powerful and sweet; gives you those creamy toneful sounds that would help your soul gel in together in your playing.


The JTM45 was first built in 1962, handmade in an all-aluminum chassis, by Ken Bran and Dudley Craven. Its first ever use in a live performance was in 1963 when a prototype was tested at the Ealing Club, not far from the original Marshall shops. Bran & Craven were in attendance. Because of its power, Marshall decided early on to build it as a head, with a separate 4×12" cabinet with Celestion speakers. The amplifier itself was based on the Fender Bassman. It uses KT66 valves, and ECC83 (12AX7) valves in the pre-amplification stage.

Significant differences between the Bassman and the JTM include the all-aluminum chassis (it is less susceptible to hum than a steel chassis), a 12AX7 valve as the first in the chain (the Bassman has a 12AY7), the Celestion speakers with a closed cabinet, and a modified negative feedback circuit which affects the harmonics produced by the amplifier. As Ken Bran later said, "The JTM also had different harmonic content, and this was due to the large amount of feedback I had given it."


By the mid 1960s, the JTM45 had become so popular that it began to supplant the ubiquitous Vox amps, even their AC50, though it was just as powerful.

In late 1965, Marshall introduced its now standard script lettering, in white, and by early 1966 it began calling the amplifiers "JTM 50". Some 100 early models had red lettering; these are especially collectible. Other cosmetic changes included a gradual change to different knobs. The JTM 45 became the basis for many subsequent Marshalls, most notably the Bluesbreaker. It ceased being produced in 1966, but was reissued in 1989, though with a modern printed circuit board and 6L6 output valves. In 2014 Marshall reissued a 30W amplifier based on the JTM45, the 2245, whose circuitry is identical to the Bluesbreaker circuit; it is a "fine high-end piece" according to Vintage Guitar, listed at €2,600+ along a 2016CX Marshall cabinet.


For all of its differences when compared with the Bassman, the sound of the JTM45 is still described as "like a tweed Fender"; it has more sag and less crunch than the later Marshalls, and is favored for blues and rock rather than for hard rock and metal. The JTM 45 delivers a smooth Marshall "crunch" with a warm bass response due to the KT66 valves.


Notable players using this Marshall amp:
-Angus Young (live, Young has a JTM45 in an isolation box under the stage)
-Gary Moore (reissue)



    -Head: Yes
    -Output (RMS): 30 Watt
    -3 Band EQ: Yes
    -Pre-Amp Valves: 3 x ECC83
    -Power Amp Valves: 2 x 5881
    -GZ34 Valve Rectifier: Yes
    -Series FX Loop: No
    -Dimensions: 26" x 10.2" x 8.1" (660 x 260 x 205 mm)
    -Weight: 32.2 lbs. (14.6 kg)
    -Power cable included
    -240V, EU

€1,550.00 Regular Price
€1,399.00Sale Price
Out of Stock
